The Problem in Detail

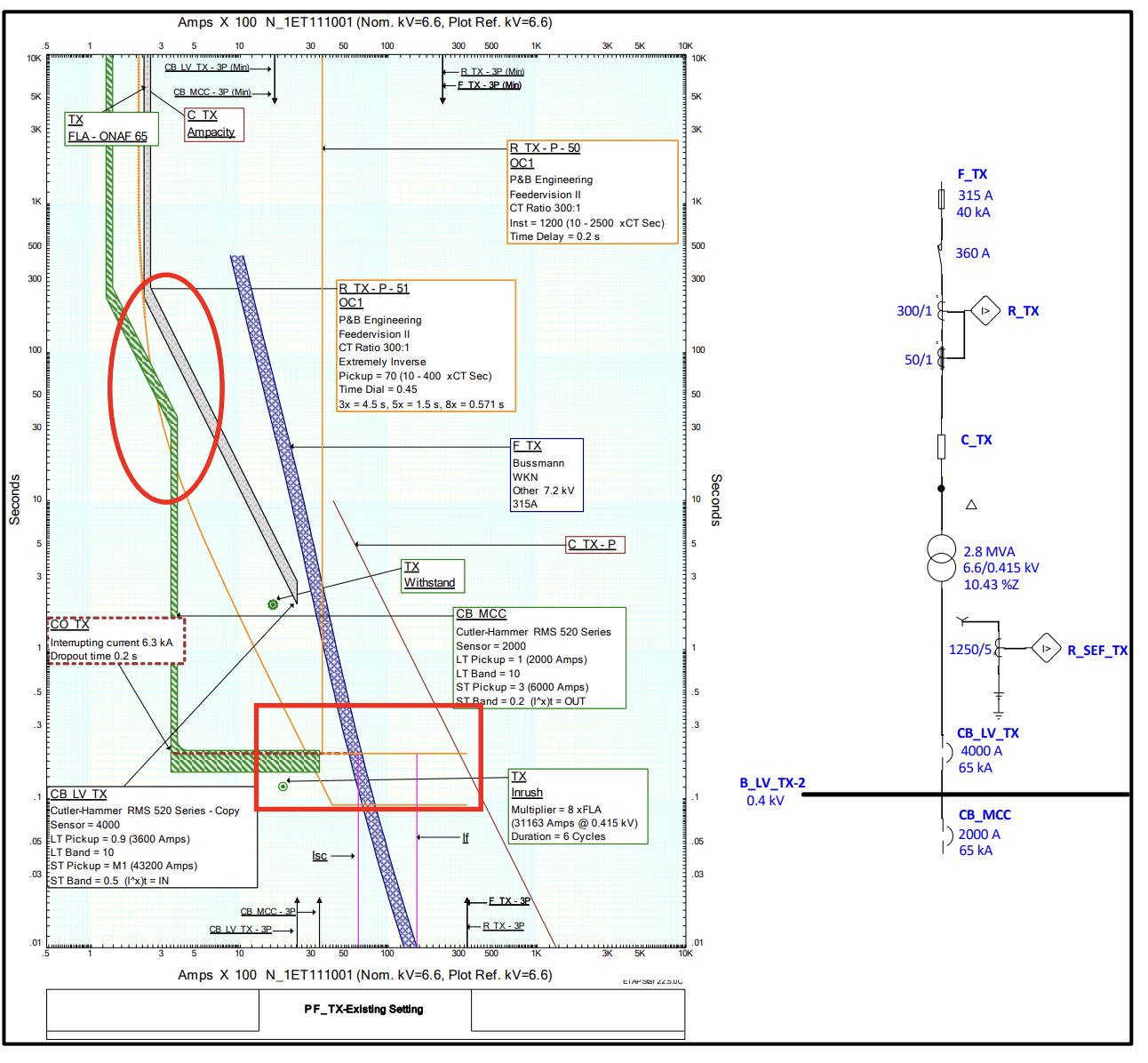

The generating station had experienced repeated failures of its main auxiliary distribution transformer, raising concerns around the performance of the existing protection scheme. A review of the protection settings identified several areas where coordination between devices could be improved, including overlapping protection characteristics and insufficient time discrimination.
Finding the Solution
Enspec carried out a detailed Protection Coordination Study for the combined cycle power plant, modelling the network in ETAP down to the 0.4 kV LV network. Existing protection settings were reviewed against IEEE coordination requirements to assess selectivity, fault clearance and device coordination throughout the system.
Making it all Work

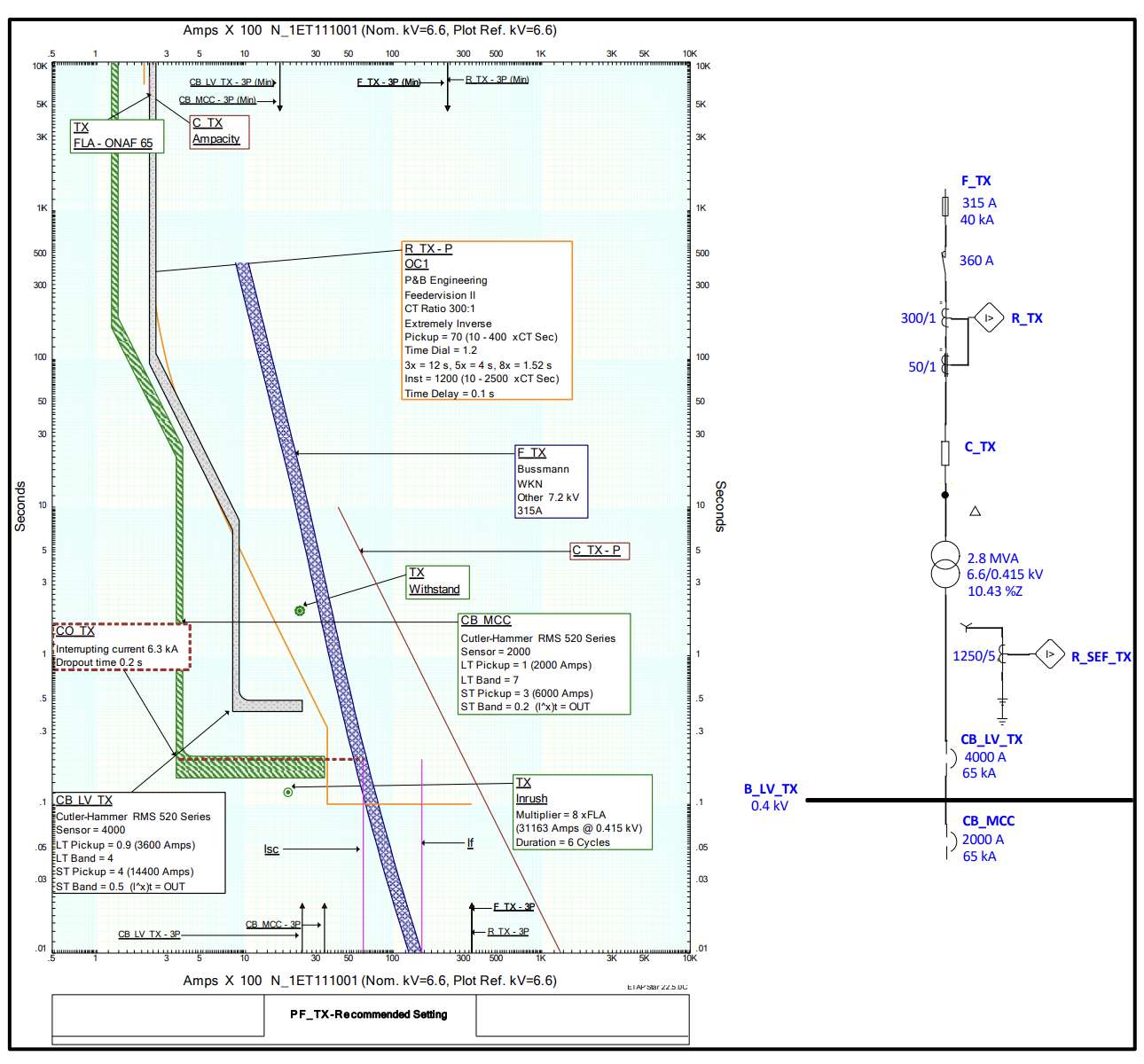

The study evaluated the performance of the existing protection scheme and identified settings that could affect the sequence of operation during fault conditions. Revised settings were developed to improve discrimination between protection devices and provide greater protection for critical equipment across the site.
The Value Enspec Added
By combining detailed network modelling with practical protection engineering expertise, Enspec provided a clear assessment of the site's existing protection scheme. The study identified opportunities to improve Protection Coordination, reduce risk to critical assets and support more effective fault clearance throughout the network.
What that Means for the Project Now
The generating station now has a clearer understanding of how its protection system will respond under fault conditions. The recommendations provide a basis for improving selectivity between protection devices, strengthening equipment protection and reducing the likelihood of future failures linked to protection coordination issues.
